anaerobic microaerobic workstation

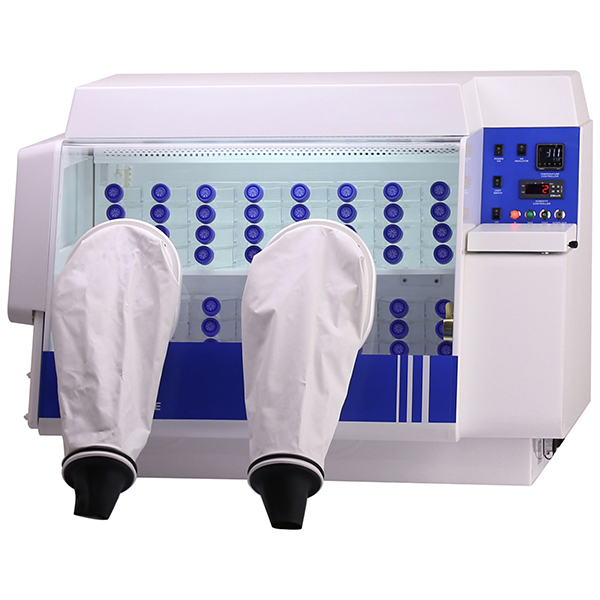

anaerobic microaerobic workstation with two gloves for use

Anaerobic microaerobic workstation is a high-precision culture equipment specially designed for the experimental operation of microorganisms under anaerobic or micro-oxygen conditions.

Description

Anaerobic Microaerobic Workstation Overview

The anaerobic microaerobic workstation is able to meet various needs of bacterial inoculation, continuous cultivation, passaging, medium conversion and observation and identification.

Working Conditions

  • Power requirements: 220V AC, 50/60Hz, rated current about 2.5A, suitable for conventional laboratory power supply.
  • Environmental temperature and humidity: Recommended 25°C, humidity <90%, ensuring stable operation and preventing condensation or damage to components.

Main Configuration

  1. Host: Provides stable culture environment and gas regulation system.
  2. Vacuum pump: Removes chamber oxygen to ensure anaerobic conditions.
  3. Long cuffs (1 pair) & rigid cuffs (1 pair): Ensure sealing/comfort, prevent air entry.
  4. O-rings: For wrist/cuff sealing, maintaining airtightness.
  5. Anaerobic indicator pump (A&B liquid): Real-time anaerobic state indication for operational judgment.
  6. Petri dish rack (3pcs): Optimized sample placement, ventilation, observation.
  7. Fluorescent lamp & UV lamp: Provide experimental lighting, UV for sterilization.
  8. Catalyst (400g/bag) & regulator (400g/bag): Oxygen decomposition and gas purification.
  9. Lubricating powder: Ensures sleeve/seal flexibility and durability.
  10. Internal power socket & power cord: For auxiliary equipment connection.
  11. Operation manual & installation/debugging tools: Guide correct setup and use.

Features

  1. Precise gas regulation system, flexible control of O₂ and CO₂ concentration.
  2. High-quality sealing for long-term stable anaerobic environment.
  3. Automatic indication/monitoring for real-time culture status.
  4. Multiple sterilization/disinfection measures to prevent cross contamination.
  5. Easy operation, ergonomic design for fatigue-free long-term use.

Advantages

  1. Adapts to various anaerobic/microaerobic microbial culture needs.
  2. Energy saving and high efficiency, reduced consumption, stable operation.
  3. Precise environmental control, high culture success rate, strong repeatability.
  4. Multi-functional combination for complex microbiological research.

Working Principle

The workstation extracts chamber air via vacuum pump, uses catalyst for rapid oxygen reduction, and regulators to remove harmful gases, ensuring safe and pure environment. Digital oxygen sensors provide real-time feedback to regulate gas ratio. Long sleeves & rigid cuffs ensure airtight hand protection. Fluorescent & UV lamps offer lighting and UV sterilization for sterile culture environment.

Application Areas

  1. Clinical microbiology diagnosis and research (anaerobic pathogenic bacteria detection).
  2. Lactobacillus and yeast culture in food fermentation industry.
  3. Environmental microbiology research: soil/water anaerobic microbial analysis.
  4. Novel microbial screening, metabolism research in biomedicine.
  5. Basic microbiology teaching/research: exploring low oxygen effects on microbes.
Technical Parameters

Model: AM20G

  1. Workstation material: Transparent acrylic board; excellent visibility, insulation, and corrosion resistance.
  2. Dimensions:
    • External: Height 660mm × Width 1050mm × Depth 660mm (fits standard lab bench)
    • Internal: Height 400mm × Width 790mm × Depth 460mm
    • Transfer case: Height 200mm × Width 120mm × Depth 120mm
    • External footprint: ~0.6 m²; Internal workspace: ≥140L; Integrated operation & cultivation design.
  3. Workstation capacity:
    • Operation: 300 × 90mm petri dishes
    • Pure cultivation: 400 × 90mm petri dishes
    • Transfer tray: 10 × 90mm petri dishes
  4. Transfer box: Standard; located outside the studio, not occupying workspace; volume ≥2L. Nitrogen blowing removes all oxygen in ≤15s. Oxygen-free transfer achieved in 15s.
  5. Parameter control range:
    • Temperature: room temp +3°C to 52°C; uniformity ±0.3°C
    • Humidity: digital control, not manual rotary; range: room humidity to 85%
  6. Operating system: Bare hand operation with long sleeve cover; comfortable, non-irritating. Gas exchange before entry avoids oxygen introduction.
  7. Foot switch vacuum & nitrogen filling; external vacuum pump standard.
  8. Palladium catalyst: High efficiency, no frequent activation; maintains oxygen <5ppm.
  9. Detoxification system: Removes H2S, volatile unsaturated fatty acids, and growth inhibitors for better culture results.
  10. Anaerobic indicator pump: Standard; ppm-level sensitivity for internal anaerobic state observation.
  11. Lighting: Built-in detection lamp or energy-saving fluorescent lamp; standard 254nm UV sterilization lamp.
  12. Gas supply:
    • Single gas: 10% H2 + 10% CO2 + 80% N2
    • Double gas: one bottle pure nitrogen, one bottle anaerobic mixture
    • Low consumption: Dual gas mode—10m³ for ~37 weeks; Single gas mode—10m³ for ~28 weeks
  13. Humidity control: Automatic system with semiconductor dehumidifier; fast and accurate.
  14. Alarm system: Low pressure, low temp, high temp sound alarms.
  15. Dry pressure relief gate: Protects internal positive pressure, prevents leakage.
  16. Removable side panels: Easy access for larger instruments and cleaning.
  17. Internal power socket: Standard configuration.
  18. Culture modes: Supports anaerobic and micro-oxygen culture; oxygen concentration 0–10%.
  19. Rapid anaerobic state: One-key fast mode; reach anaerobic state in only 45 minutes.
