electric heating mantle for distillation and concentration

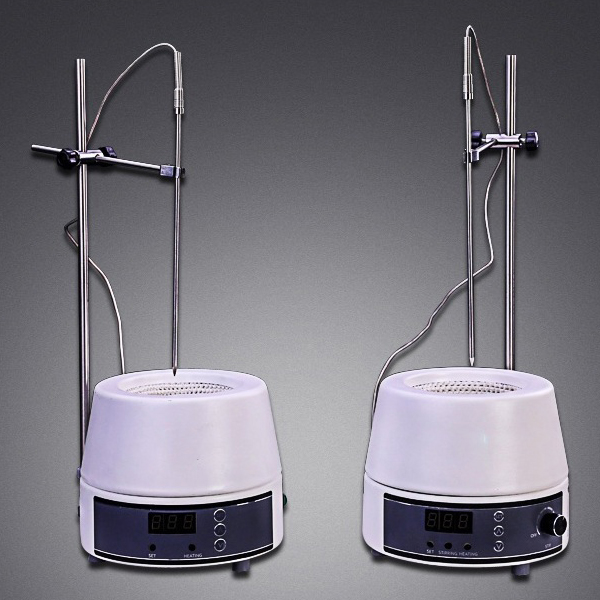

Modern Electric Heating Mantle

The modern electric heating mantle is equipped with a digital temperature control system for precise and stable heating, making it indispensable for organic chemistry, biological experiments, and sample processing.

Main Features

1. Digital Temperature Control: High-precision sensors and digital display allow real-time monitoring and adjustment, with a wide temperature range up to 380 °C.
2. Sturdy Shell: Cold-rolled steel plate construction with anti-corrosion coating ensures durability in harsh chemical laboratory environments.
3. High-Quality Heating Element: Spiral-wound nickel-chromium alloy wire delivers rapid heating, high temperature performance, and long service life.
4. High Precision Control: Maintains temperature fluctuations within ±2 °C, ideal for experiments requiring thermal stability.
5. Continuous Operation: Designed for long-term stable operation to meet extended heating needs.

Advantages

1. High Safety: No open flame reduces risk of explosion or fire; especially suited for heating flammable liquids.
2. Uniform Heating: Heat wraps around the container’s bottom and sides, preventing local overheating and temperature gradients.
3. Energy-Saving & Efficient: Close contact between heating element and container ensures high thermal efficiency and rapid response, saving experiment time.
4. Easy Operation: Simple, intuitive digital interface for quick startup and adjustment by researchers.

Working Principle

The heating mantle uses resistance heating: the nickel-chromium alloy wire generates heat when energized, which is transferred to the flask or beaker via an insulating layer. A built-in thermocouple monitors temperature in real time, and the control system adjusts current output to maintain the set temperature. The system includes a heating body, insulation layer, thermostat, and shell, forming a closed-loop heating system.

Application Areas

1. Chemical laboratory: Solvent reflux, synthesis, distillation, concentration, and other organic reactions.
2. Pharmaceutical & Biological Engineering: Raw material extraction, dissolution, stability experiments.
3. Environmental Testing & Sample Processing: Digestion and heating of water and soil samples.
4. Food Analysis & Quality Control: Sample heating and pretreatment prior to analysis.
5. Research & Teaching Institutions: Standard heating equipment for university and research lab experiments.
