forced air drying oven for the pharmaceutical industry

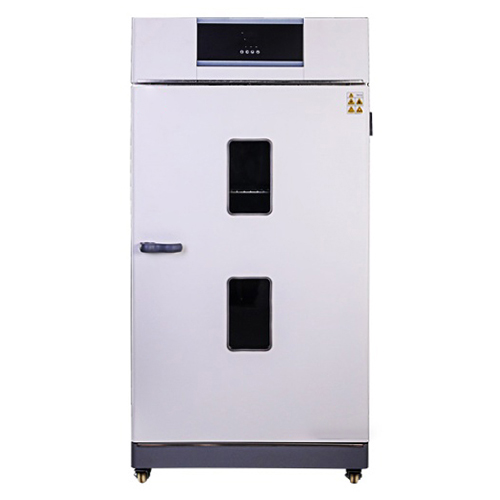

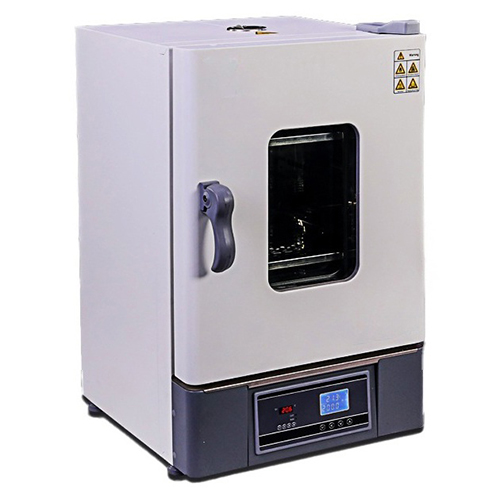

Forced Air Drying Oven

The forced air drying oven is a versatile instrument widely used in experimental research and production processes across food, chemical, pharmaceutical, electronics, and other industries. It offers high safety, precise temperature control, and uniform drying performance for a wide range of applications.

Main Features

1. High Safety: Over-rise alarm system automatically warns of excessive temperatures, preventing equipment damage and safety incidents.
2. Accurate Temperature Adjustment: Special function keys enable precise temperature setting for stability and repeatability.
3. Convenient Operation: Fixed value operation and timer control allow automatic stop after completion, reducing manual intervention.
4. Auxiliary Menu Functions: Includes over-rise alarm, deviation correction, and menu lock for enhanced safety and convenience.
5. Vertical Dual-Airway Air Jacket Design: Turbo centrifugal fan creates forced convection, ensuring uniform temperature distribution.
6. Fan Speed Control: Adjustable speed for drying light, fine, or powdery samples to match airflow with sample needs.
7. Long and Stable Operation: Forced fan cooling keeps fan temperature below 50 °C, extending fan lifespan.
8. Wide Temperature Range: Room temperature +10 °C to 300 °C.
9. Forced Convection Air Circulation: Ensures uniform heat distribution.

Working Principle

The oven uses an electric heating element to heat air, which is then circulated by a turbo centrifugal fan through a vertical dual-airway air jacket. This design creates a uniform airflow, ensuring even heating of samples. Fan speed can be adjusted for different sample types. Integrated alarm and protection mechanisms guard against temperature over-rise for safe operation.

Advantages

1. Temperature Uniformity: Dual-channel air jacket and forced convection guarantee even sample heating and minimal temperature gradients.
2. Energy-Saving & Efficient: Fan speed control and forced convection improve heat utilization and reduce energy waste.
3. Safe & Reliable: Advanced control and alarm systems ensure operator and equipment safety.
4. Easy Operation: Features include timing, fixed value, and automatic stop to simplify operation and minimize human error.

Application Areas

1. Laboratory research: Sample drying, baking, and heat treatment for chemical, biological, and physical experiments.
2. Food industry: Food drying, wax melting, baking, and other processes preserving flavor and nutrients.
3. Electronics industry: Drying and baking electronic components, circuit boards, sensors, and precision parts.
4. Pharmaceutical industry: Drying herbs, drug curing, and melting, complying with GMP requirements.
5. Material processing: Suitable for drying powdery or granular substances in various materials.

Optional Configurations

1. Partition: Flexible internal space adjustment for diverse sample drying needs.
2. RS485 Interface: Supports external device data exchange for remote monitoring and operation.
3. Printer and Recorder: Real-time temperature and status recording for data archiving and analysis.
4. Remote Control & SMS Alarm: Enables remote management and monitoring with SMS alerts.
5. U Disk Data Storage: Convenient data saving and export for post-experiment analysis.
