jaw crusher capable of smooth operation and low noise level

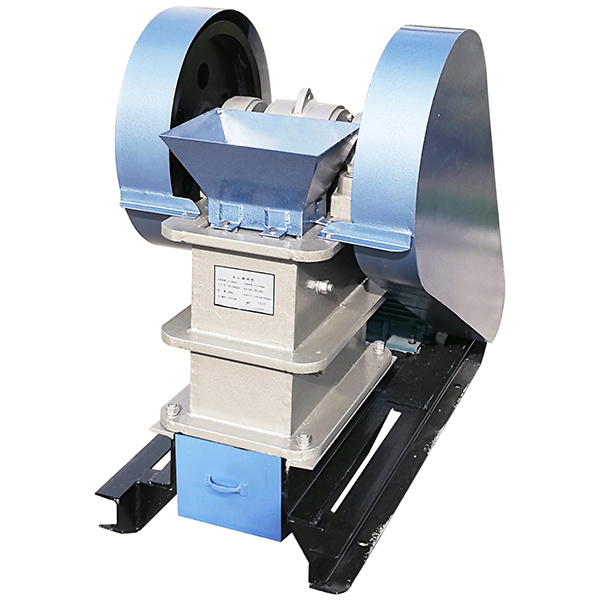

Pendulum Jaw Crusher

Pendulum Jaw Crusher crushes the material through the clamping action between the up and down swinging movable jaw and the fixed jaw, which is a common sample preparation and ore crushing equipment in coal, electric power, steel, metallurgy and other industries.

Features

1. Compact structure: the body is composed of sturdy steel structure, the overall design is compact, easy to transport and install.
2. Adjustable discharge opening: the width of the discharge opening is controlled through the adjusting device to ensure the demand of products with different particle sizes and meet different process requirements.
3. Good sealing: through the reasonable sealing design, effectively reduce the leakage of dust in the crushing process, to ensure a clean operating environment.
4. Easy to maintain: the structure of the equipment is designed to facilitate routine maintenance and overhaul, easy replacement of parts, reducing downtime.
5. Strong durability: the use of wear-resistant materials manufactured by the crushing chamber, extend the service life of the equipment, adapt to the high load and long time working environment.

Advantages

1. High crushing ratio: through the reasonable angle design of jaw plate, it can realize high efficient crushing of materials with even particle size, which can meet the needs of all kinds of production lines.
2. Easy to operate: the equipment runs stably, the operation process is simple and convenient, and there is a perfect automation control system, which can easily realize remote monitoring and automated operation.
3. Low energy consumption and high efficiency: the optimized design of movable jaw and advanced transmission method reduces energy consumption and improves crushing efficiency.
4. Low noise and low vibration: the equipment operates with low noise and low vibration, suitable for demanding working environment.
5. Wide adaptability: suitable for a variety of materials crushing, such as coal, ore, stone, etc., different hardness of materials can be effectively crushed.

Working Principle

1. Feeding stage: the material to be crushed enters the crushing chamber through the feeding opening.
2. Crushing stage: the electric motor drives the movable jaw through the belt and pulley to make periodic reciprocating motion, and the distance between the movable jaw and the fixed jaw changes constantly. The material is squeezed and sheared between them, and is crushed gradually.
3. Discharge Stage: The crushed material is discharged from the discharge opening, and the size is controlled according to the gap adjusted by the adjusting device to obtain the required particle size.

Since the movable jaw is designed to swing, this makes the jaw crusher not only suitable for crushing large materials, but also meets the needs of finer materials processing, with a larger scope of application.

Application Fields

1. Coal and power industry: used for primary crushing and pre-processing of coal samples, in line with the requirements of the relevant standards, widely used in power plants for coal sample testing and quality analysis.
2. Iron and steel metallurgy industry: used for the crushing of ores, furnace charge and other minerals, to provide suitable material size for metallurgical production process.
3. Geological exploration: It is suitable for the preparation of geological samples, commonly used in the preliminary crushing of rock ores and minerals, providing accurate and uniform samples for subsequent analysis.
4. Building materials industry: It can be used for crushing limestone, sandstone and other building materials, which improves the processing efficiency of raw materials and the uniformity of particle size.
5. Third-party testing institutions: In all kinds of inspection and testing process, as an important equipment for sample processing, to ensure the standardization and consistency of samples.
6. Mines and quarries: as one of the main equipment for ore and stone crushing, it is suitable for large-scale production line operation, and is highly effective in coarse-grained crushing.
