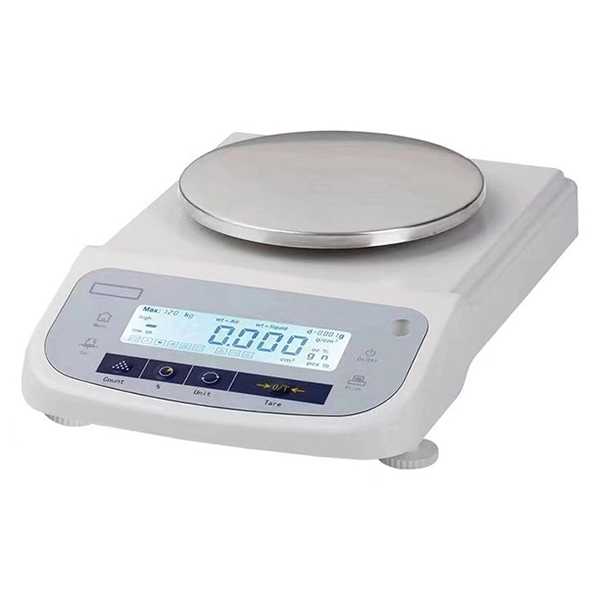

precision balance with gold-plated ceramic capacitive sensor

Main Features of the Precision Balance

1. Graduated value: accuracy up to 10mg, suitable for weighing tasks that require higher accuracy but not up to milligram accuracy.
2. Bottom weighing device: designed with a bottom weighing device to facilitate stable weighing of larger objects and adapt to the weighing needs of various items.
3. Gold-plated ceramic load cell: Equipped with gold-plated ceramic variable capacitance load cell to ensure high accuracy and stability on the basis of fast response, adapting to different operating environments.
4. Humidity Sensor: Built-in high-precision humidity sensor, which can effectively reduce the impact of environmental humidity changes on the weighing results, ensuring that the balance always maintains high stability.
5. temperature sensor: equipped with a high sensitivity temperature sensor, can effectively reduce the temperature fluctuations brought about by the error, and further improve the accuracy of measurement.
6. cost-effective design: under the premise of ensuring accuracy and stability, it has a high cost-effective, suitable for a variety of weighing tasks to meet the needs of a wide range of users.
7. LCD liquid crystal display: equipped with high brightness LCD display, clear screen, reasonable layout, convenient for users to view the weighing results in real time. With clear digital display to avoid reading errors.
8. stainless steel weighing pan: the weighing pan is made of stainless steel, which is corrosion and abrasion resistant, ensuring that the pan remains stable and beautiful during long time use.
9. a variety of weighing unit conversion function: provide grams (g), carat (Ct), ounces (oz) and other units to switch freely, suitable for different areas of weighing needs.
10. a variety of weighing modes: basic weighing, counting, percentage weighing, check weighing mode and other multi-functional, to meet the needs of different working environments.
11. Optimized structural design: Streamlined design not only has a delicate appearance, but also enhances the structural strength of the equipment, with anti-static, anti-corrosion, anti-leakage characteristics, suitable for laboratory and industrial environments.
12. Built-in RS232 bidirectional communication interface: Equipped with RS232 interface, it can be conveniently connected with computer, printer and other devices to realize data transmission and recording, suitable for automated data processing.

Advantages of Precision Balance

1. High Accuracy: By adopting gold-plated ceramic sensor and advanced humidity and temperature control technology, it ensures that it can still provide accurate weighing results under variable environmental conditions.
2. high stability: equipped with humidity sensor and temperature sensor to reduce the interference of the external environment, to ensure the stability of the weighing results.
3. easy to operate: LCD liquid crystal display, simple operation panel design allows users to easily read the data, improve work efficiency.
4. Multi-functionality: not only support regular weighing, but also support counting, percentage and checkweighing and other modes, increasing the scope of application of the equipment.
5. strong durability: stainless steel weighing pan to resist corrosion, streamlined structure to enhance the strength and extend the service life, and can adapt to a variety of working environment.

Working Principle

The core working principle of the precision balance is based on capacitive sensing technology. When an object is placed on the balance’s pan, the gold-plated ceramic variable capacitance sensor detects the change in weight and the capacitance value changes. The sensor converts the change in capacitance into an electrical signal, which is then processed by the balance’s internal electronic system and converted into a digital signal displayed on the LCD screen. At the same time, the humidity and temperature sensors automatically adjust the compensation by real-time monitoring of environmental changes to ensure that the weighing accuracy is not affected by the external environment.

Application Areas

1. Laboratory: widely used in chemical, physical, biological and other laboratories to accurately measure chemicals, pharmaceuticals and other experimental materials.
2. Food industry: used for accurate weighing of food raw materials to ensure the stability of product quality.
3. Pharmaceutical industry: precise weighing is very critical in pharmaceutical manufacturing, dispensing and laboratory research, used for precious herbs and chemical reagents.
4. Chemical industry: Accurate weighing of raw materials ensures accurate ratios in the production process and improves product quality.
5. metal manufacturing industry: in the production of precision metal parts, the balance can be used for weight measurement of parts to ensure the accuracy of the production process.
6. jewelry industry: jewelry, precious metals and other high-value items are weighed accurately to ensure fairness and accuracy in the transaction.
