vacuum drying oven with one-shot silicone sealing strip

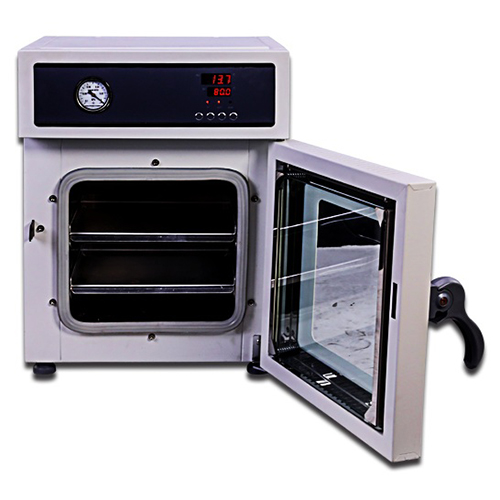

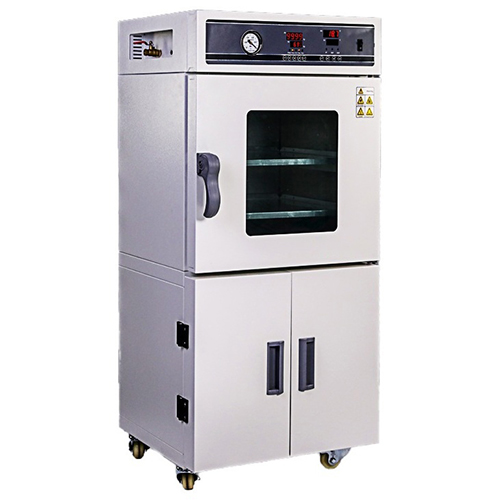

Vacuum Drying Oven

Vacuum drying oven can be dried under vacuum conditions, thus effectively preventing samples from being damaged due to high temperature, which is widely used in many fields such as laboratory, scientific research and production.

Main Features of Vacuum Drying Oven

• 1, special design for heat-sensitive substances: suitable for heat-sensitive, easily decomposed, easily oxidized substances, such as pharmaceuticals, chemical reagents, biological samples.
• 2, inert gas filling function: inert gas (such as nitrogen, argon, etc.) can be filled in the drying process to prevent the sample from oxidizing or reacting.
• 3, sealing design: equipped with adjustable door lock, adaptive observation window frame, and one-time molding silicone sealing strip to ensure long-term stable sealing and prevent air or gas leakage.
• 4, Accurate temperature control: Equipped with PID temperature controller, the temperature control is more accurate to ensure the temperature stability in the drying process.
• 5, feature-rich: temperature setting can be realized through the special function keys, and the auxiliary menu supports the functions of over-rise alarm, deviation correction and menu locking to ensure the safety and precision of operation.
• 6, safety design: the equipment has an over-rise alarm system to prevent damage to the sample caused by excessive temperature.
• 7, temperature range: from room temperature +10 °C to 250 °C, adjustable range, to adapt to different drying needs.
• 8, Vacuum range: less than 133Pa, which can realize efficient low-pressure environment and ensure good results in the process of sample drying.

Advantages

• 1, protection of heat-sensitive substances: through the vacuum drying technology, it can effectively prevent the sample from being damaged in the high temperature environment, which is suitable for those substances that are easy to deteriorate and oxidize.
• 2, high efficiency: the equipment can quickly remove water and solvent in the sample under low temperature and low pressure environment, improve the drying efficiency and reduce energy consumption at the same time.
• 3, Multi-functionality: The temperature and vacuum degree of the vacuum drying oven can be precisely adjusted to meet a variety of experimental needs, suitable for applications in different fields.
• 4, safe and reliable: precision PID control system and multiple safety measures (such as over-rise alarm and temperature control deviation correction) to ensure long-term stable operation of the equipment, to avoid potential safety hazards.
• 5, easy to operate: through simple function key operation and clear liquid crystal display, users can easily set and monitor the drying process.

Working Principle

Through hot air convection drying in a closed vacuum environment. As the air pressure is lowered under vacuum, the boiling point of moisture is also lowered, which makes the moisture evaporate at a lower temperature, thus achieving the drying effect. The hot air circulates inside the box through the forced convection device to ensure uniform heat distribution and improve the drying efficiency. In addition, by adjusting the vacuum degree, the speed and degree of water evaporation can be controlled to further ensure the safety of samples and drying quality.

Application Fields

• 1, pharmaceutical industry: used for the drying of drug raw materials, Chinese herbal medicines, preparations and their excipients, to avoid affecting the active ingredients of drugs due to high temperature.
• 2, chemical experiments: for chemical reagents, solvents drying, to avoid unnecessary reactions of chemical substances due to exposure to air.
• 3, food industry: drying perishable food, health care products, etc., to maintain its nutrients and flavor, to extend the shelf life.
• 4, Biomedical: used for drying biological samples, cell culture media, vaccines and other biological products to maintain their activity and stability.
• 5, Electronic products: It is used for drying electronic components, integrated circuits, etc. to ensure their stable performance in low-humidity environment.
• 6, Environmental monitoring: it can be used for drying environmental pollutants and sample pretreatment, providing accurate data after drying for subsequent analysis.
