Name: circulation heating thermostat with cooling function
Brand: trustlee-gb

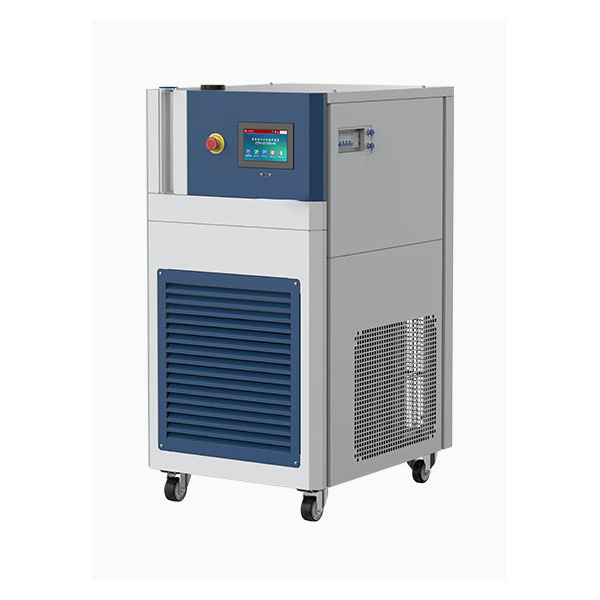

Circulation Heating Thermostat

The circulation heating thermostat integrates refrigeration, heating, circulation pump group, and intelligent control module, with options for air-cooled or water-cooled cooling methods. It is ideal for high-precision thermal management in applications such as reaction kettle temperature control, new material testing, chip heat treatment, and industrial process temperature regulation. Stable operation from -40°C to +200°C, PID program temperature control, data export, and remote communication functions meet the needs of automated production and scientific research.

Core Features

Wide-temperature operation capability: Covers -40°C to +200°C, suitable for low-temperature gel reactions and high-temperature cracking.
Highly integrated modular structure: Integrates cooling, heating, circulation, and control systems in one compact, efficient unit.
Flexible cooling mode: Supports air-cooled and water-cooled condenser forms; users select based on site conditions.
High-definition touch screen control: 7-inch true color touch screen, intuitive operation, data curve display, and operation record function.
Program temperature control ability: Supports 120 groups of temperature control programs, each with 100 temperature segments, allowing linear and gradient temperature rise and fall.
Automatic protection mechanisms: Over-temperature, over-current, overload, delayed start, high-voltage protection, and more for safe operation.
Remote communication and integration: RS485 interface compatible with MODBUS RTU, connectable to upper systems (DCS, SCADA) for centralized control.
Expansion vessel design: Built-in expansion vessel and liquid level monitoring automatically respond to heat-carrying medium volume changes, ensuring stable circulation.
Wide adaptation to heat conduction mediums: Supports water, ethanol, silicone oil, and other fluids for diverse application requirements.

System Principle

Refrigeration Principle: Built-in rolling rotor hermetic compressor rapidly cools the heat-carrying body via condenser, capillary throttling, and plate evaporator. Plate heat exchanger is compact and efficient. Air-cooled type uses finned condenser; water-cooled uses coaxial heat exchanger.
Heating Principle: Special flange-type electric heater for thermal oil provides high power density and fast response, ensuring uniform temperature distribution.
Circulation and Expansion Mechanism: Shielded pump suitable for high/low temperatures delivers continuous medium flow. 304 stainless steel piping with insulation prevents heat loss/corrosion. Expansion vessel absorbs volume fluctuations; liquid level monitor ensures stable operation.
Control Logic: PID algorithm adjusts temperature output in real time, supports temperature curve setting, fixed-value, and program control. Software supports data recording, curve display, USB export, and remote communication.

Application Areas

Chemical and pharmaceutical reaction temperature control: High-precision synthesis, crystal culture, drug intermediate control.
New energy materials development: Batteries, superconducting materials, carbon nanotubes thermal cycle testing.
Semiconductor and electronic component testing: Rapid thermal stress testing for chips, circuit boards.
Vacuum system thermal control support: Works with vacuum drying, condensation recovery, and related equipment.
Aerospace simulation testing: Test component performance under changing temperature environments.
University and scientific research experiments: Provides high-precision temperature control for research platforms and reliable experiments.

circulation heating thermostat with cooling function

Model

HC10-4(W)

HC10-10(W)

HC10-12(W)

Temperature range

-40°C to +200°C

Temperature stability

±0.5°C

Overall power

5.7kw

11.1kw

18.6kw

Cooling power at 200°C

3kw

6kw

12kw

Cooling power at 100°C

3kw

6kw

8.6kw

Cooling power at 25°C

2.4kw

4.5kw

5.8kw

Cooling power at -10°C

1.4kw

4.2kw

4.5kw

Cooling power at -20°C

1.2kw

3.2kw

3.5kw

Cooling power at -30°C

0.85kw

2kw

Cooling power at -40°C

0.25kw

1.1kw

Heater Rated Power

3kw

6kw

12kw

Cooling method

air cooling or water cooling

refrigerants

R404A

Circulation pump Flow rate

30L per minute

45L per minute

Circulation pump Pressure

1bar

1.4bar

Circulation Interface Size

R3/4

Maximum viscosity of heat-carrying medium

30cp

Noise level

65db

communication interface

usb, RS485

protection class

IP20

contamination level

Environmental temperature

5°C to 35°C

Power supply

380Vac, 50Hz, 3 phase

Current

10.5A

20A

33A

Electrical Connection Methods

three-phase four-wire system

External dimensions

640Wx860Dx1270H mm

750Wx1100Dx1420H mm

Weight

205kg

330kg

360kg
